7 Tips for Choosing the Right Vertical Machine?

Choosing the right Vertical Machine can shape production quality, operating cost, and delivery reliability. A machine may look impressive on a showroom floor, yet fail beside your actual workholding, tooling, or coolant system. The decision needs evidence, not attractive specifications.

Industry reports show why this choice deserves careful attention. The Association for Manufacturing Technology’s U.S. Manufacturing Technology Orders reports track continuing investment in advanced CNC equipment across automotive, aerospace, medical, and general industrial production. Grand View Research also identifies CNC machine tools as a growing global market, supported by automation, tighter tolerances, and rising demand for flexible production. These trends matter, but market growth does not guarantee the right fit for every workshop. A high-speed spindle can be wasteful when your parts require heavy roughing. A large table can also create unnecessary costs if most jobs fit within a smaller envelope.

The following seven tips focus on practical selection criteria. They examine workpiece size, spindle power, axis travel, accuracy, control systems, automation readiness, service support, and total ownership cost. Deloitte’s smart manufacturing research shows that manufacturers increasingly connect equipment investment with productivity, resilience, and data visibility. That connection is useful, but it can be overstated. Not every factory needs a fully connected cell on day one.

Walk through your production floor. Measure the largest fixture, check chip flow, and review three years of maintenance records. Speak with operators. Their experience may reveal problems that brochures hide. A reliable Vertical Machine should support today’s workload while leaving sensible room for tomorrow’s demands. This is where careful judgment matters most.

Table of Contents [Hide]

1 Define Your Production Requirements and Machining Goals

2 Compare Machine Size, Capacity, Accuracy, and Speed

3 Evaluate Controls, Tooling, Automation, and Operator Needs

4 Assess Reliability, Safety, Maintenance, and Service Support

5 Review Total Ownership Costs and Confirm the Final Choice

Define Your Production Requirements and Machining Goals

Choosing the right vertical machine starts with production facts, not attractive specifications. Record material types, part dimensions, tolerances, batch sizes, and monthly output. Include drilling, milling, tapping, and surface-finishing requirements. Small details matter.

Define the target clearly. A machine for 200 aluminum housings monthly differs from one cutting hardened steel daily. Review spindle speed, torque, table travel, tool capacity, coolant delivery, and chip removal.

The International Federation of Robotics reported 162 robots per 10,000 manufacturing employees globally in 2023. This signals growing automation pressure, but automation only helps when cycle times and part handling are measurable. Ask for a realistic cycle-time study, not a showroom demonstration.

Plan for tomorrow, carefully. The machine should support expected materials, future fixtures, inspection routines, and operator skill levels. Energy and maintenance also affect the real cost. The U.S. Department of Energy notes that industrial motor systems can represent a major share of facility electricity use, so request power-consumption data under actual cutting loads. Do not overbuy. I once treated maximum spindle power as the main decision factor; it looked convincing, but the machine’s limited table space caused more delays. Compare usable work envelope, repeatability, service access, training needs, and documented accuracy. Leave room for mistakes. Production rarely follows the spreadsheet.

Compare Machine Size, Capacity, Accuracy, and Speed

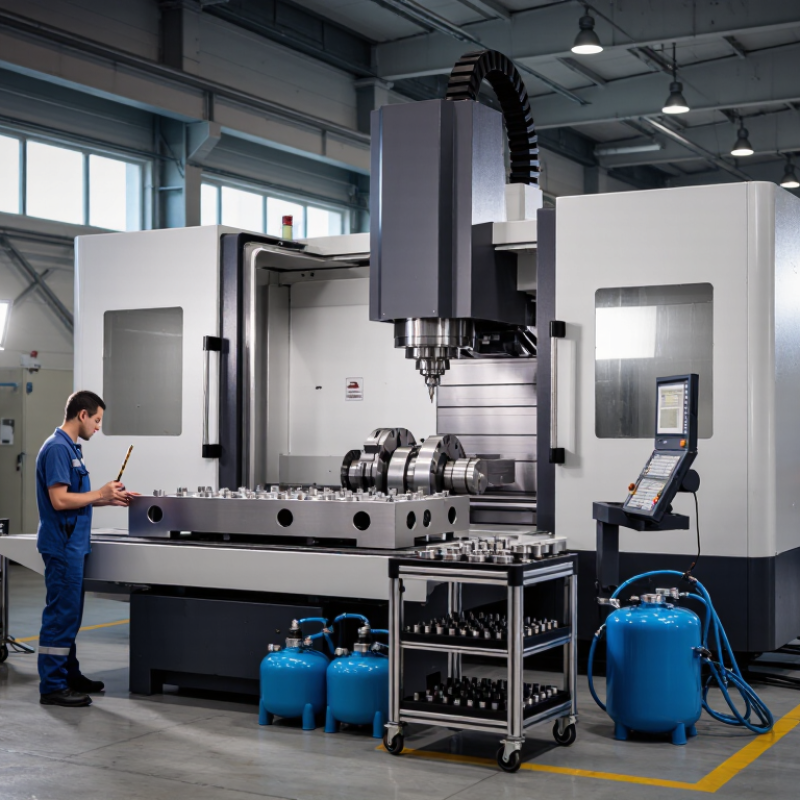

7 Tips for Choosing the Right Vertical Machine

Tip 1: Measure the machine envelope carefully. Leave room for fixtures, tools, doors, and operator access. A compact machine may fit your shop, but limited travel can restrict future projects.

Tip 2: Check capacity beyond table dimensions. Review maximum workpiece weight, spindle clearance, tooling space, and chip evacuation. A heavy part can expose weaknesses quickly.

Tip 3: Match accuracy to your real tolerances. Ask for positioning accuracy, repeatability, and inspection records.

Tip 4: Consider thermal stability during long cycles. Workshop temperatures change, and accuracy can drift. I once trusted a specification sheet too much and underestimated heat from continuous cutting. That mistake was expensive.

Tip 5: Compare speed with cutting performance, not headline rpm. Spindle speed matters, but feed rate, torque, acceleration, and material removal rate matter more. The fastest machine is not always the most productive.

Tip 6: Test representative components before purchasing. Use your material, tooling, fixtures, and typical programs when possible. A short demonstration can reveal vibration, awkward access, or slow tool changes.

Tip 7: Review measurement methods and service support. Reliable data should come from documented tests, not casual claims. Leave some capacity unused. This is difficult to justify, but it protects against larger jobs and changing production needs. A machine that meets today’s requirements narrowly may become a limitation sooner than expected.

Evaluate Controls, Tooling, Automation, and Operator Needs

7 Tips for Choosing the Right Vertical Machine

Evaluate Controls, Tooling, Automation, and Operator Needs

A vertical machine should fit your daily work, not only your production targets. Test the control interface with a real operator beside you. Menus should feel clear, responsive, and easy to correct after a mistake. Check tool offsets, program loading, alarm messages, and setup screens. A five-minute demonstration can hide frustrating details.

Inspect the tooling system closely. Confirm that holders, workholding, and cutting tools match your existing processes. Measure access around the spindle and table. Crowded spaces slow setup and increase handling errors. Ask how quickly tools can be changed. Also examine coolant delivery, chip removal, and visibility through the enclosure. Small weaknesses become expensive during long shifts.

Automation deserves practical testing. Watch a loading cycle, recovery procedure, and manual override. Does the machine recover smoothly after a paused cycle? Can one operator monitor several tasks without rushing? Sensors and automatic probing may improve consistency, but they still require proper training. Do not assume automation removes all labor. It can create new maintenance duties.

Operator needs often reveal the most important facts. Check door height, lighting, noise, reach distance, and floor access. Invite experienced machinists to test the machine using familiar parts. Their comments may challenge your original assumptions. I have seen teams prioritize speed and later regret poor access during inspection. Leave room for that uncomfortable possibility. A technically capable machine can still be the wrong choice.

7 Tips for Choosing the Right Vertical Machine? – Evaluate Controls, Tooling, Automation, and Operator Needs

Use this comparison matrix to score each candidate machine from 1 to 5, where 1 means poor fit and 5 means excellent fit. Adjust the weighting to match your production requirements.

Tip	Decision Area	Key Dimension	What to Evaluate	Practical Selection Guidance	Suggested Weight	Priority
1	Match the Work Envelope	Travel, table size, and load capacity	Compare the machine's X, Y, and Z travel with the largest part, fixture, and tool clearance required for the job.	Allow additional space beyond the current largest workpiece for clamping, tool access, chip clearance, and future part growth. Confirm both table load capacity and fixture height limits.	15%	High
2	Evaluate Control Capability	Programming, feedback, and usability	Review conversational programming, standard G-code support, tool-life monitoring, probing functions, alarm messages, data storage, and operator interface clarity.	Choose controls that support the required programming method and provide clear diagnostics. User-friendly screens and guided setup functions can reduce training time and setup errors.	15%	High
3	Check Spindle and Cutting Performance	Speed, torque, power, and rigidity	Compare spindle speed range, available torque at typical cutting speeds, spindle taper, acceleration, machine rigidity, and thermal stability.	Select a high-speed spindle for small tools and aluminum work, or prioritize torque and rigidity for larger tools, hard materials, and heavy cutting. Match the spindle to the actual material mix.	15%	High
4	Review Tooling and Workholding	Tool capacity, change time, and fixture flexibility	Assess the number of tool pockets, maximum tool diameter and length, tool change method, presetting requirements, fixture compatibility, and access to the work zone.	Provide enough tool capacity for the complete process plus frequently used backup tools. Confirm that the table pattern, vise size, rotary equipment, and probing devices fit within the work envelope.	15%	High
5	Plan for Automation	Loading, unloading, and process monitoring	Determine whether the machine can support pallet changing, robotic loading, bar or blank handling, automatic probing, tool-life management, chip removal, and production data collection.	For repetitive work, prioritize standardized interfaces, accessible loading areas, reliable part detection, and automatic recovery functions. For high-mix work, retain quick manual access and flexible fixturing.	15%	Medium
6	Consider Operator Requirements	Ergonomics, safety, and training	Inspect door opening, table height, visibility, chip access, control placement, setup accessibility, guarding, lighting, noise, and routine maintenance points.	Operators should be able to load parts, change tools, inspect work, remove chips, and perform daily checks without awkward reaches or unnecessary exposure to hazards. Match control complexity to workforce skill levels.	15%	High
7	Compare Total Cost of Ownership	Productivity, service, and operating cost	Estimate purchase cost, installation, training, tooling, fixtures, energy use, coolant management, preventive maintenance, spare parts, service response, and expected downtime.	Evaluate cost per acceptable part rather than purchase price alone. Request realistic cycle-time demonstrations and verify service availability, warranty coverage, maintenance intervals, and replacement-part lead times.	10%	High

Assess Reliability, Safety, Maintenance, and Service Support

Choosing the right vertical machine requires more than comparing speed, size, and price. Reliability should be tested through documented uptime, spindle performance, and results from demanding production shifts. Ask for service records, not broad promises. A machine that holds accuracy after hours of cutting is more valuable than one that only looks impressive during a demonstration.

Tip 1: Inspect the structure for rigidity and visible workmanship. Tip 2: Confirm that safety guards, emergency stops, interlocks, and operating controls are practical. Tip 3: Request a cutting trial using material similar to your daily work. Listen for unusual vibration. Small noises may become costly failures. I once focused too heavily on output rates and overlooked access around the work area. That mistake slowed setup and increased operator fatigue.

Tip 4: Review the maintenance schedule, including lubrication, filtration, and wear-part replacement. Tip 5: Check whether routine inspection points are easy to reach. Tip 6: Ask how quickly qualified technicians can respond, and whether parts are locally available. Tip 7: Clarify training, remote assistance, warranty limits, and escalation procedures before signing an agreement. Good support should be measurable. Look for response targets and clear responsibilities. A perfect plan rarely survives real production, so leave room for adjustment. Speak with current users when possible, and compare their daily experience with the supplier’s technical documents.

Review Total Ownership Costs and Confirm the Final Choice

7 Tips for Choosing the Right Vertical Machine

Review Total Ownership Costs and Confirm the Final Choice

A vertical machine’s purchase price is only the opening line. Installation, tooling, training, coolant, software, maintenance, and floor preparation can quickly reshape the budget. The U.S. Department of Energy reports that motor-driven systems use about 70% of industrial electricity. Therefore, compare spindle efficiency, standby consumption, and annual operating hours. A cheaper machine may consume more power every shift.

Build a three-year and ten-year ownership model. Include preventive maintenance, replacement components, calibration, scrap, and operator downtime. The International Energy Agency’s Energy Efficiency 2024 report identifies industry as using roughly 37% of global final energy. Energy deserves more attention than it usually receives. Ask for measured consumption, not optimistic estimates. Request service response times and technician coverage in writing. Confirm whether training includes real production parts.

Then test the final choice with your own material, tolerances, and cycle program. Measure cutting time, surface finish, tool wear, chip control, and power draw. A supplier demonstration can look perfect. Production is less forgiving. I have seen teams overlook setup changes and fixture costs. That mistake can erase an attractive price difference. Review the data with operators and maintenance staff before approving the purchase. Their concerns may be less polished, but often more useful.
