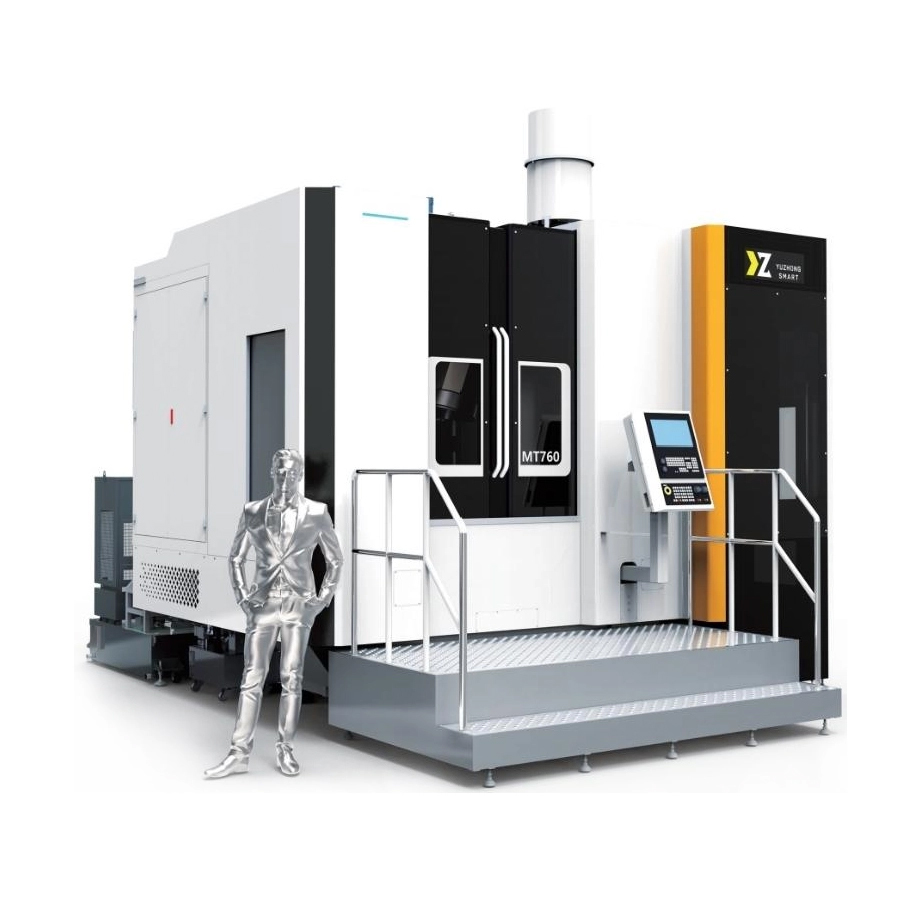

YUZHONG MT760 5-Axis High-Rigidity Precision Machining Center
Product overview
Core Performance Parameters
● Capacity: It can achieve a maximum turning diameter of 850 mm and a maximum cutting diameter of 800 mm. The travels of X/Y/Z axes are -300~+650 mm, -200~+200 mm, and -220~+900 mm respectively, providing sufficient space for 5-axis simultaneous machining operations, a key advantage for a five axis machining center and vertical cnc lathe.
● Spindles: The turning spindle is of A2-11 type, with a speed range of 10–1500 rpm and power of 28/31 kW. The milling spindle is equipped with a built-in motor, operating at 6000 rpm, with 33 kW power and 248 N·m torque, ensuring strong cutting force in 5-axis simultaneous machining, similar to the powerful performance of dual-spindle lathes.

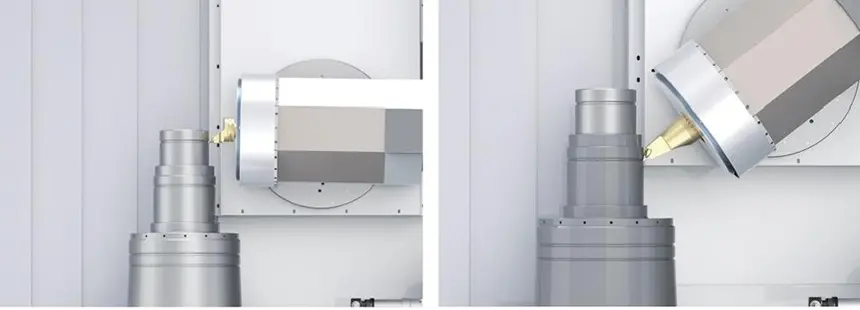

● Rotary axes: The B-axis can rotate from -90° to +120° with a resolution of 0.01°, and the C-axis rotates 360° continuously with an accuracy of 0.001°, realizing full 5-axis simultaneous machining with high precision, a defining feature of a five axis machining center.
● Accuracy: It has a positioning accuracy of ±0.008 mm and a repeatability of ±0.004 mm, guaranteeing stable quality in 5-axis simultaneous machining, essential for a high-quality vertical cnc lathe.
Key Components & Advantages

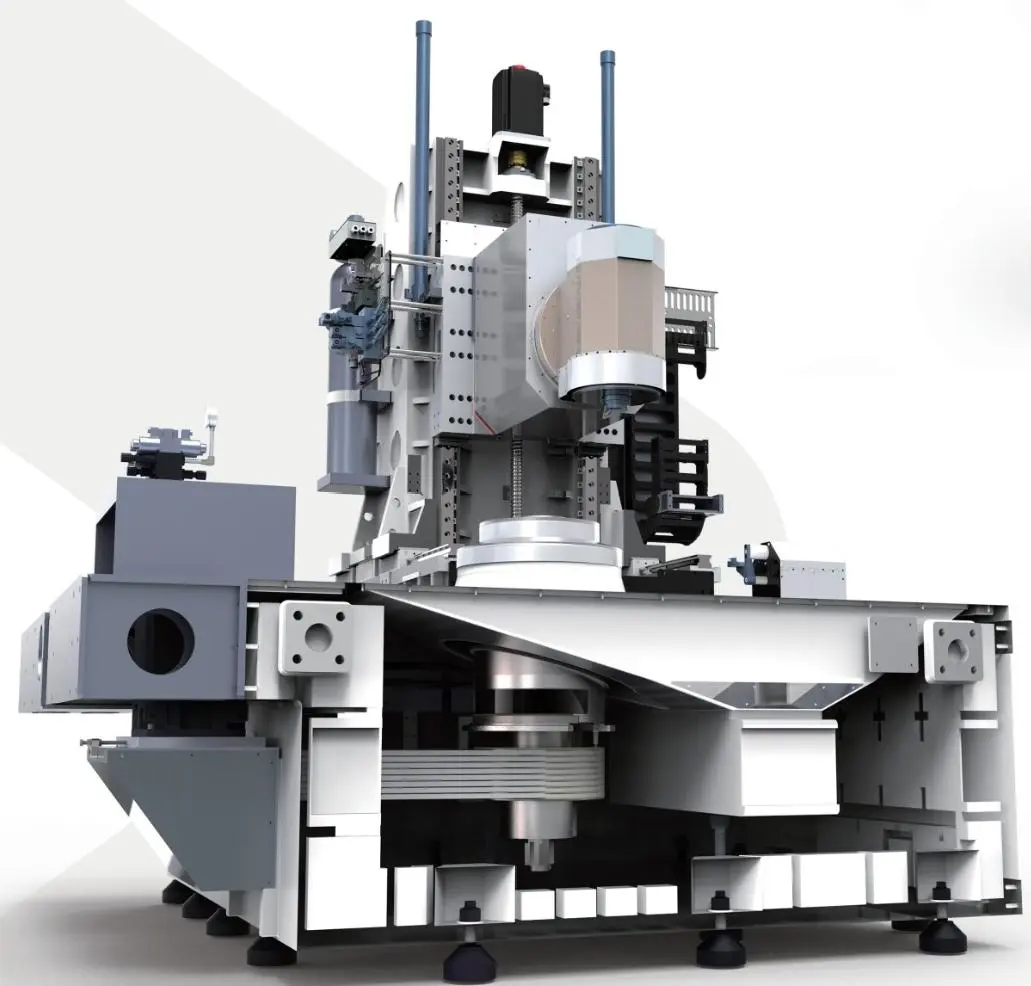

● Guide rails and drives: The X/Y/Z three axes are equipped with heavy-duty linear guides, and the X & Z axes adopt dual-motor ball-screw drives, ensuring rigidity and high-speed performance in 5-axis simultaneous machining, enhancing the efficiency of this five axis machining center and vertical cnc lathe.
● Tool changing system: It is equipped with a 40-station chain-type magazine (Capto C8 / HSK100 interface) with a 10 s tool-to-tool change time. The H series vertical servo tool magazines with advanced tool preparation, along with the standard 60 chain tool changer system in three dimensions and independent servo movement of double manipulators, enable fast and precise tool changes, meeting flexible manufacturing needs in 5-axis simultaneous machining, a feature that sets it apart from ordinary dual-spindle lathes.

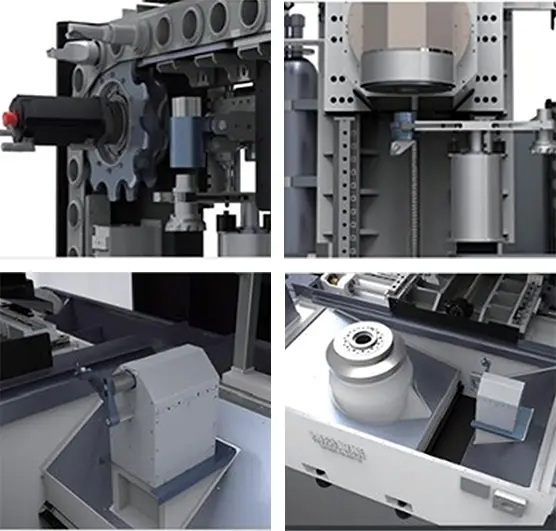

● Special mechanisms: The B-axis indexing mechanism with large span support and the workpiece spindle with excellent rigidity and high-speed performance (driven by a built-in motor for even force and fast response) ensure easy and powerful cutting in 5-axis simultaneous machining, with long-lasting stability due to the heavy-duty design, making it a reliable five axis machining center and vertical cnc lathe.
Application Scenarios
The YUZHONG MT 760, as a versatile five axis machining center and vertical cnc lathe, is widely applicable in automotive, rail transport, and general engineering industries. It is particularly suitable for processing complex prismatic and rotational parts that require finishing in one setup, relying on its excellent 5-axis simultaneous machining capabilities to improve production efficiency and product quality, just like a high-performance dual-spindle lathe.

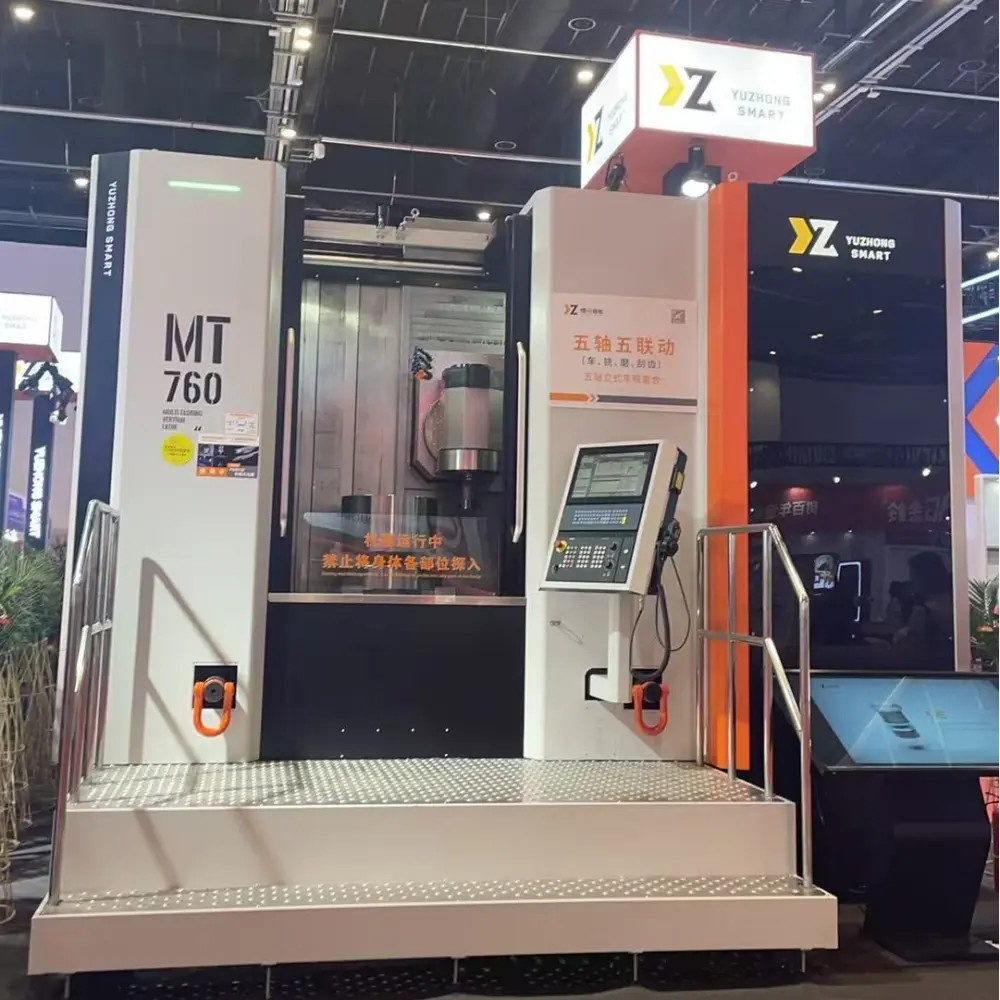

Product DISPLAY
