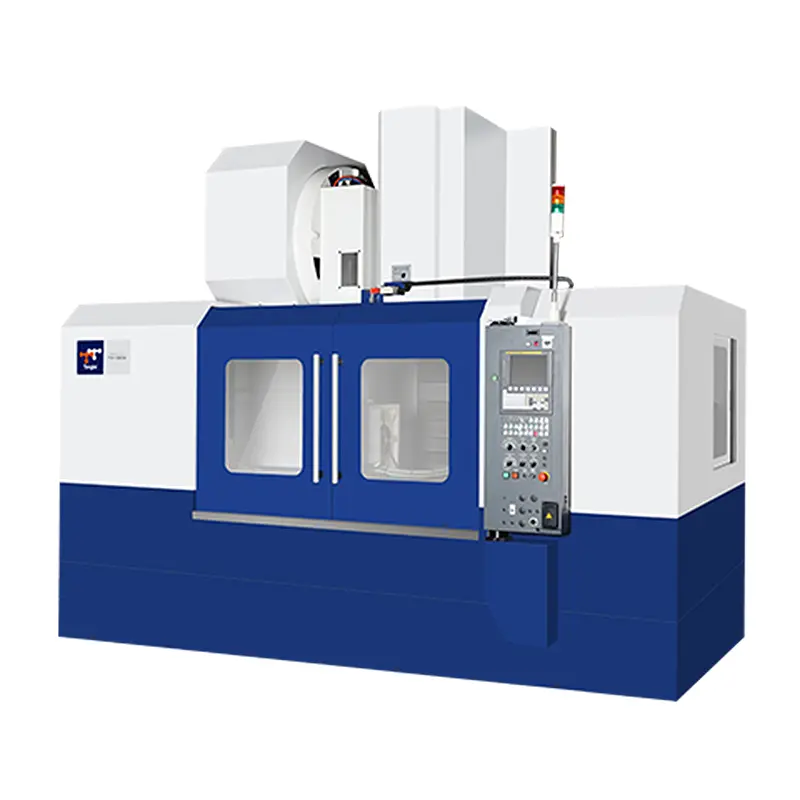

Vertical Machining Center Tongtai TMV1350A: Box Way Stability for Heavy Cutting

Product Overview

Designed as a heavy-duty vertical machining center, the TMV1350A stands out with its box way structure—prioritizing stability for demanding cutting tasks. Unlike standard milling centers, its reinforced design handles substantial loads while maintaining precision, making it a reliable choice for processing medium to large workpieces.

● Worktable Capabilities: With a 1500×750 mm table and 1300 kg max load, paired with X/Y/Z travels of 1350×750×700 mm, it accommodates bulky components like automotive subframes and industrial castings.

● Heavy Cutting Performance: The optional BT-50 spindle (3500–6000 rpm) with gearbox delivers superior torque, while the 18.5 kW motor powers through tough materials—outperforming many CNC turning centers in high-torque scenarios.

● Stable Motion: Box way slides minimize deflection during heavy cuts, while X/Y rapid traverse at 20 m/min and Z-axis at 15 m/min balance speed and control. The Z-axis counterbalance reduces operational strain, enhancing longevity.

● Customization Options: Supports tailored configurations, including 32-tool magazine upgrades, to match specific production needs—adding versatility to its heavy-duty core.

Key Advantages

● Box Way Rigidity: 3-axis box way slides and four Y-axis guides provide unmatched stability, critical for multi-axis CNC machines handling heavy cutting loads.

● Enhanced Z-Axis Performance: Counterbalance system reduces wear during vertical movements, ensuring consistent precision in prolonged operations— a feature that distinguishes it from basic vertical lathes.

● Powerful Spindle: BT-50 taper with gearbox design excels in heavy material removal, making it suitable for hardened steel and thick castings beyond the scope of standard vertical milling machines.

● Automotive-Focused Design: Popular in auto manufacturing for its ability to process large structural parts with high repeatability, complementing 5-axis machining centers in production lines.

Ideal Applications

Trusted for machining automotive chassis components, heavy machinery parts, and large metal structures. Its box way stability and heavy cutting capability make it a valuable addition to workshops alongside horizontal CNC machines handling diverse workloads.
