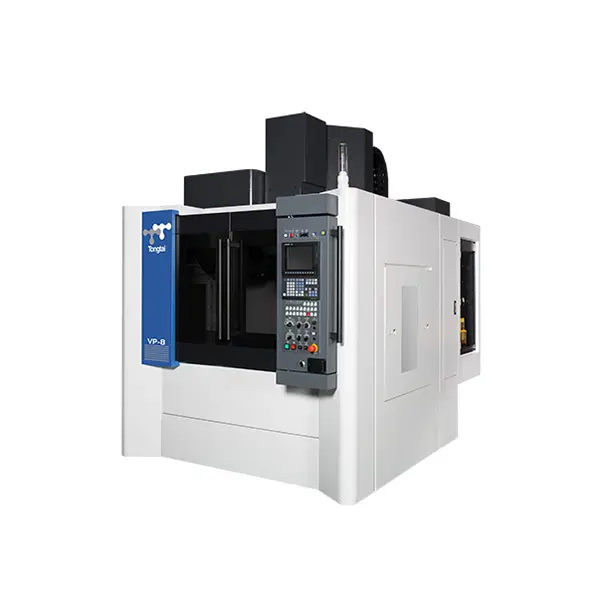

Tongtai Vertical Machining Center VP-8 Top Seller
Product Overview
The VP8 is a compact, high-speed vertical machining center produced by Jiangsu Dongtai Precision Machinery Co., Ltd. It is engineered for small- to medium-sized precision parts in 3C electronics, medical devices, automotive and general machining markets.Key specifications
• Work envelope: 800 × 500 × 550 mm (X-Y-Z)
• Table size: 1000 × 500 mm, max. load 500 kg
• Spindle: 10 000 rpm belt-driven (12 000–15 000 rpm direct-drive optional); BT-40 taper
• Rapid traverse: 48 / 48 / 36 m/min (X / Y / Z)
• Feed rate: 1–10 000 mm/min
• Tool magazine: 24-arm type, 2.5 s tool-to-tool
• Positioning accuracy: ±0.005 mm (linear scales optional)
• Repeatability: ±0.003 mm
• Control: Mitsubishi / Fanuc / Siemens, user-selectableConstruction & features
• Meehanite cast-iron frame with ribbed column and extra-wide base for rigidity
• C3-grade ball screws, pre-tensioned and cooled to minimize thermal growth
• Roller-type linear guideways on all axes for high speed and smooth motion
• Spindle oil-cooling unit and full splash-guard enclosure standard
• Simple 3-point leveling and compact footprint (≈ 2.4 × 2.0 m) for easy shop-floor placementTypical applications
• Table size: 1000 × 500 mm, max. load 500 kg
• Spindle: 10 000 rpm belt-driven (12 000–15 000 rpm direct-drive optional); BT-40 taper
• Rapid traverse: 48 / 48 / 36 m/min (X / Y / Z)
• Feed rate: 1–10 000 mm/min
• Tool magazine: 24-arm type, 2.5 s tool-to-tool
• Positioning accuracy: ±0.005 mm (linear scales optional)
• Repeatability: ±0.003 mm
• Control: Mitsubishi / Fanuc / Siemens, user-selectableConstruction & features
• Meehanite cast-iron frame with ribbed column and extra-wide base for rigidity
• C3-grade ball screws, pre-tensioned and cooled to minimize thermal growth
• Roller-type linear guideways on all axes for high speed and smooth motion
• Spindle oil-cooling unit and full splash-guard enclosure standard
• Simple 3-point leveling and compact footprint (≈ 2.4 × 2.0 m) for easy shop-floor placementTypical applications
Precision aluminum housings, graphite electrodes, brass/steel mold inserts, 5G communication components and medical implants.In short, the Dongtai VP8 delivers high-speed, high-accuracy machining in a space-saving package ideal for job shops and high-volume production alike.
Product information
CNC: FANUC
Spindle speed range: 15000 rpm
Spindle motor power: 15/11/7.5
Tool taper: 7/24 Taper No.40
Number of axis: 3
X-Axis Movement: 820
X-Axis Rapid Traverse: 48
Y-Axis Movement: 510
Y-Axis Rapid Traverse: 48
Z-Axis Movement: 535
Z-Axis Rapid Traverse: 36
Outer length: 900 mm
Outer width: 510 mm
Table load: 500 kg
Excellent condition for a used machine
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Product Specifications
| Axis X | 820 mm |
| Axis Y | 510 mm |
| Axis Z | 535 mm |
| Rotary table (4th axis) | no |
| Type of CNC | FANUC |
| Table length | 900 mm |
| Table width | 510 mm |
| Max.part weight | 500 kg |
| Spindle taper | 40 |
| Max.spindle speed | 15000 rpm |
| Spindle motor power | 15 kW |
| Worked hours | |
| Hours under power | |
| State | good |
| At local norms |
Product advantage

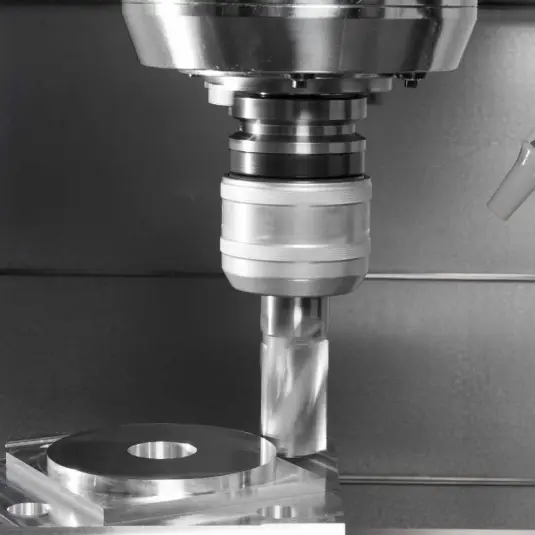

● VP series is especially designed for high speed general parts machining. With high speed BBT-40 spindle, high torque performance, coolant through spindle(Opt.), and spindle cooler(Opt.), that assure machining ability and precision requirements
● Excellent C type mechanical structure design provides strong machine rigidity. It assures machining performance for high speed and high precision machining.
● After numerous tests, VP series has the features of high efficiency, high quality, and low maintenance costs.
● Elgant sheet metal design with high quality powder coating, YP series show steady, reliable and simple characteristics.
