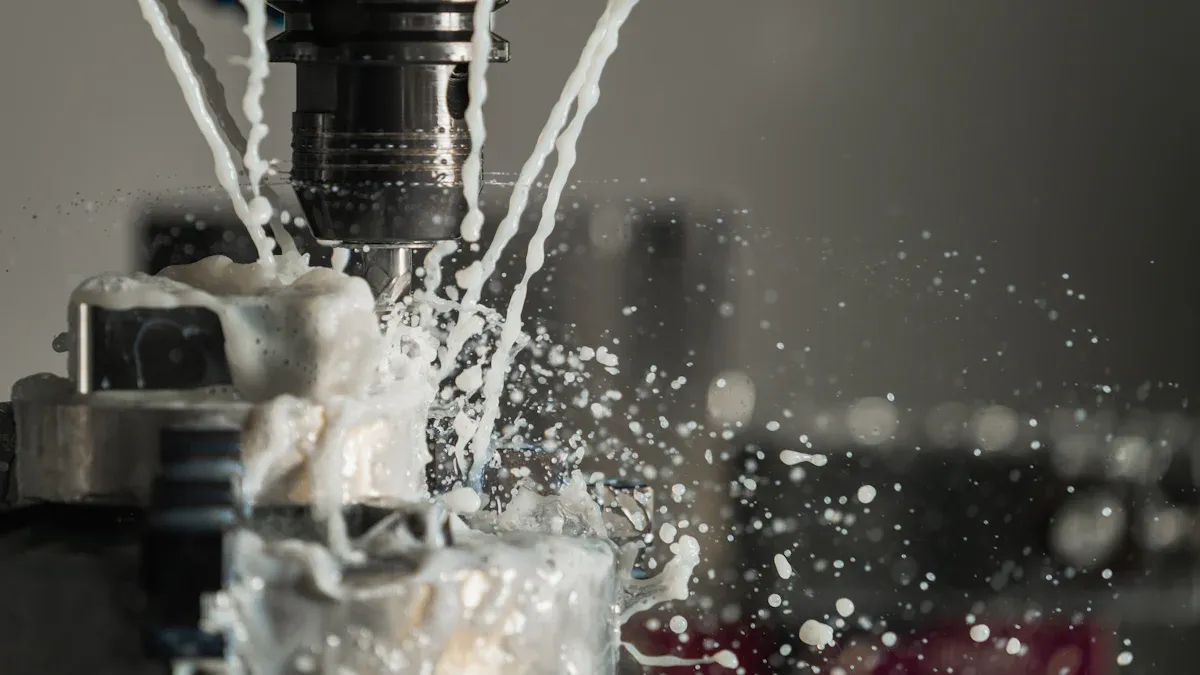

Why Compact CNC Vertical Machining Centers Are Ideal for Small Shops

Compact CNC Vertical Machining centers provide small shops with a multitude of advantages. These cnc vertical machining centers optimize space efficiency, lower costs, and offer operational flexibility. The design improves ease of operation, simplifying programming and setup. Furthermore, their cost efficiency results in savings that benefit both the shop and its customers, making them an ideal choice alongside acnc drilling center or a vertical cnc lathe machine.

Space Efficiency

Smaller Footprint

Compact CNC vertical machining centers (VMCs) are designed to occupy significantly less floor space compared to traditional machining centers. Their smaller footprint allows small shops to maximize their available workspace. For instance, VMCs typically require a footprint of around 2.9 m × 2.7 m, making them ideal for environments where every square foot counts.

• Comparison with Standard Machines:
  • Vertical machining centers generally occupy less floor space than horizontal machining centers with similar work envelopes.
  • The compact design of VMCs makes them suitable for shops where floor space is limited.

The average dimensions of compact CNC vertical machining centers vary, but they often fall within the following range:

Optimized Layout

The design of compact CNC vertical machining centers enables optimized shop layouts. These machines utilize vertical orientation, which enhances the efficient use of floor space. This orientation is particularly beneficial in smaller manufacturing environments.

• Key Features:

  Feature	Description
  Space Efficiency	Designed to minimize space requirements while maximizing functionality.
  Vertical Orientation	Efficient use of floor space, ideal for smaller manufacturing environments.
  Complete Processing	Can process multiple sides of workpieces without reclamping, enhancing productivity.
  Machining Dimensions	Height up to 920 mm and length up to 2,500 mm, extremely space-saving and compact.
  Shorter Processing Times	Workpieces up to 1,500 mm can be machined without reclamping, resulting in up to 35% shorter machining cycles.

The compact CNC vertical machining center's ability to process multiple sides of a workpiece without the need for reclamping significantly reduces setup time and increases overall productivity. This efficiency is crucial for small shops aiming to optimize their operations while maintaining high-quality output.

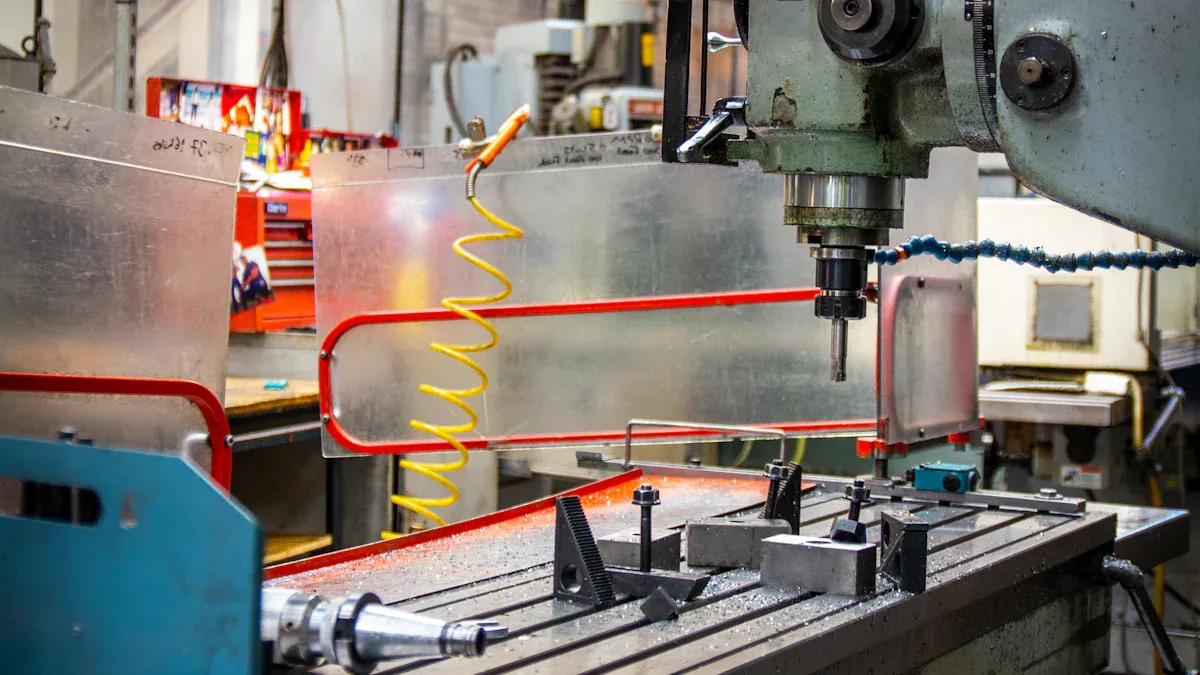

Cost-Effectiveness

Lower Initial Investment

Compact CNC vertical machining centersoffer a significantly lower initial investment compared to larger Cnc Machines. This affordability makes them an attractive option for small shops looking to expand their capabilities without breaking the bank.

• Typical Price Ranges:

  Type	Typical Price Range (USD)
  Compact CNC Vertical Machining Centers	$2,495 and up
  Larger CNC Machines (e.g., Bridgeport-type)	$12,500 and up
  Professional CNC Mills	$60,000 to $500,000+

The cost savings from purchasing a compact CNC vertical machining center can be substantial. For instance, a small shop can invest in a compact machine for as little as $2,495, while larger machines often start at $12,500. This difference allows small businesses to allocate funds to other critical areas, such as marketing or workforce development.

Moreover, financing options are available to ease the burden of upfront costs. Small shops can explore various plans, including:

• Buy now, pay later options
• Lease-to-own agreements
• Financing for individuals with no or bad credit

These flexible financing solutions enable small businesses to acquire advanced machinery without immediate financial strain.

Reduced Operating Costs

In addition to lower initial investments, compact CNC vertical machining centers help reduce ongoing operating costs. Their efficient design leads to lower energy consumption and maintenance expenses, which are crucial for small shops aiming to maximize profitability.

• Energy Efficiency:
  • Compact machining centers are optimized for high-speed operations, resulting in reduced non-cutting time.
  • They typically consume less energy per part produced compared to traditional CNC machines, which may operate slower and have less efficient setups.

This energy efficiency translates into significant savings over time. Small shops can expect lower utility bills, allowing them to reinvest those savings into their operations.

Furthermore, the maintenance costs associated with compact CNC vertical machining centers are generally lower than those for larger machines. Regular maintenance is essential to keep operational costs low, but the durability of these machines often leads to fewer repairs and less downtime.

"The maintenance budgets are often included in operating costs but may not be accurately reflected in ROI calculations. Maintenance can lead to downtime and affect productivity, with costs related to repairs and gradual performance decline."

By minimizing downtime and enhancing productivity, compact CNC vertical machining centers contribute to a lower total cost of ownership.

• Key Benefits:

  Feature	Benefit
  Compact Footprint	Saves floor space, reducing overhead costs.
  Efficient Design	Lowers maintenance costs due to durability.
  Larger Work Cube	Increases productivity by allowing larger parts to be machined.

Operational Flexibility

Versatile Applications

Compact CNC vertical machining centers excel in versatility, making them suitable for various manufacturing tasks. They can process a wide range of materials, including:

These machines are ideal for small shops that require flexibility in their production capabilities. Common manufacturing tasks include:

Ease of Use and Maintenance

Compact CNC vertical machining centers prioritize user-friendliness. Their design accommodates operators with varying skill levels, making them accessible for beginners. Key features that enhance ease of use include:

• Compact footprint: Ideal for space-constrained shops, allowing more machines in limited areas.
• Ease of use: Designed for operators with varying skill levels, making it accessible for beginners.

These machines also address common operational challenges faced by small shops, such as the need for advanced technology investments and the complexity of implementing automation. By embracing these technologies, small shops can remain competitive in a dynamic market.

A representative from Townsend Machine emphasizes the necessity of investing in advanced machining technologies to produce complex parts quickly.

Compact CNC vertical machining centers support rapid changeover between different manufacturing tasks, enhancing overall efficiency and productivity.

Compact CNC vertical machining centers empower small shops to maximize space, minimize costs, and enhance productivity. Their benefits include:

• Cost-effectiveness, as they are generally less expensive than larger machines.
• Ease of use, simplifying setup and adjustment processes.
• A small footprint, making them ideal for limited spaces.
• Versatility, suitable for various applications like drilling and milling.

As the demand for precision manufacturing rises, small shops will increasingly adopt these machines to meet production needs efficiently.

FAQ

What materials can compact CNC vertical machining centers process?

Compact CNC vertical machining centers can process materials like aluminum, iron, resin, and brittle materials, making them versatile for various applications.

How much space do these machines typically require?

These machines usually require a footprint of around 2.9 m × 2.7 m, making them ideal for small shops with limited space.

Are compact CNC vertical machining centers easy to maintain?

Yes, these machines are designed for durability, resulting in lower maintenance costs and less downtime compared to larger CNC machines.
